Pozdravujem, otvaram nove tema, pretoze som dosiel ku potrebe poriadne si zahrat/zamastit/zasmazit/zadrtit. Chcel by som prerobit joystick Playstation 1 na Amigu. Da sa kupit aj od kippera - bohuzial sa mi neozval uz nespocetne krat som mu pisal, tak som sa rozhodoal konat sam.
Navod na internete som nasiel tu - https://aminet.net/package/docs/hard/appe_v32
Dnes som zohnal PIC 16F84, paticu, dosky na leptanie a zopar suciastok.
Kedze budem potrebovat napalit PIC , hladam niekoho kto mi to napali alebo si kupim palicku za 20€. Nasiel som tento z Ebay, podporuje PIC 16f84 a stoji len 8 libier.
Chcel by som Vas poprosit o rady a pomoc pri mojom dalsom projekte (ale ich dako zacina pribudat).

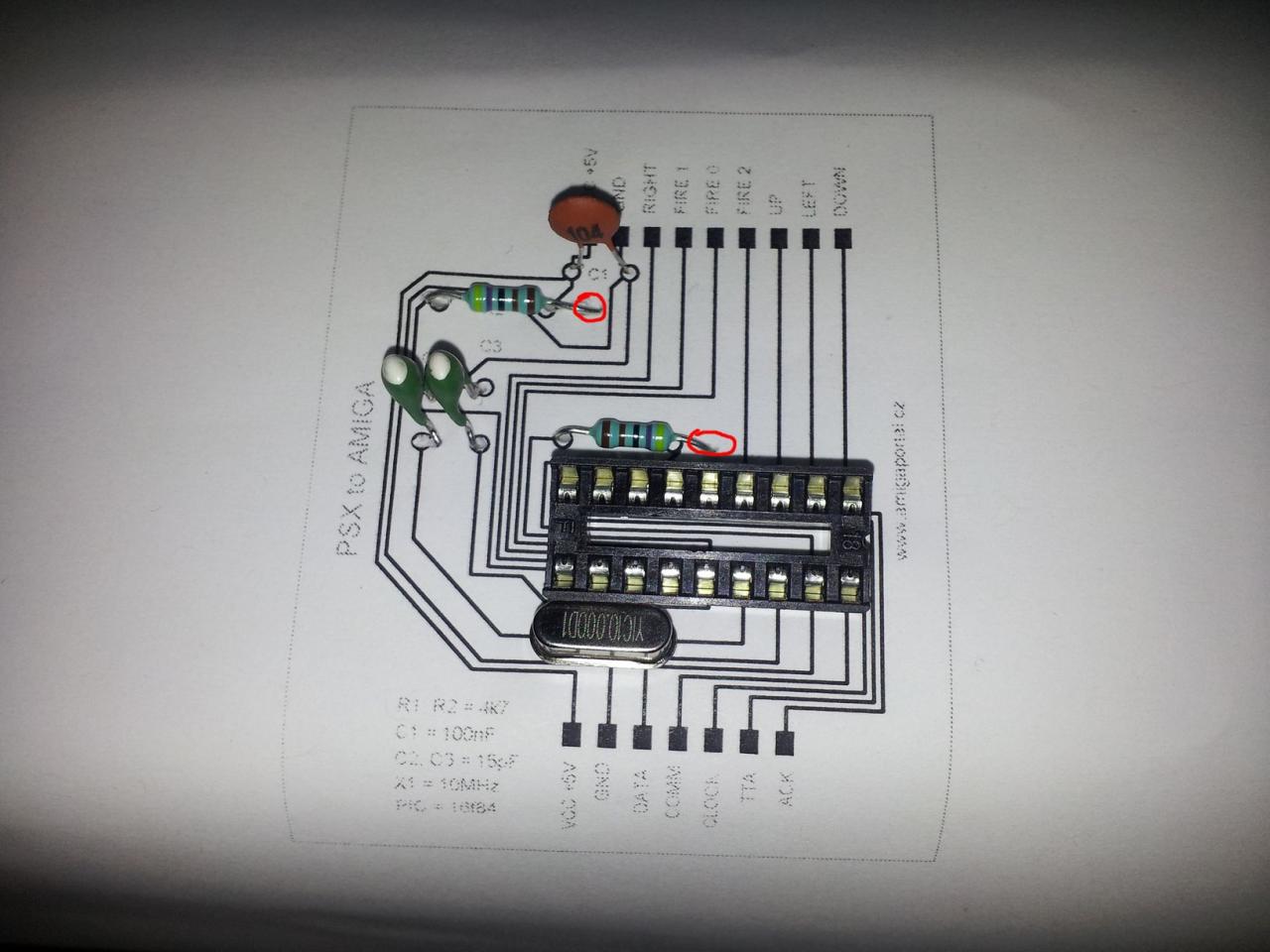

V com si najlespie nakreslit plosak, vyleptat, ako si to naniest na dosku ?
Dakujem vopred.
Dostal som odporucanie na prekontrolovanie programu pred napalenim - cez MPLAB
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
--------------- English text Spanish version in the bottom --------------
APPE v3.0.2
Amiga Playstation Pad Emulator
(c) Benjamin Morente - AckMAN 2000
********************
Introduction
********************
First, excuse my poor english. i'm spanish.
In Spain every next day is more hard to find suitable Joysticks to use in the Amiga, Here in Granada it's almost impossible, we need to find they outside... this is time consuming and expensive. When we found it we have other problem usually the Joystick have one or two buttons, this makes it unusable to play games on some emulators like WarpSnes or MamePPC that requires a CD32 PAD to play games with more than two buttons... But one day looking shops i see lots of PlayStation pads... There are in a great variety of colors, forms... and prices... it's posible find cheap Pads here next of my home... but we can't use they on my Amiga... or not?... if i can... if i do... and APPE was born!
>>>>>>>>>>>> Amiga PlayStation Pad Emulator <<<<<<<<<<<<<<

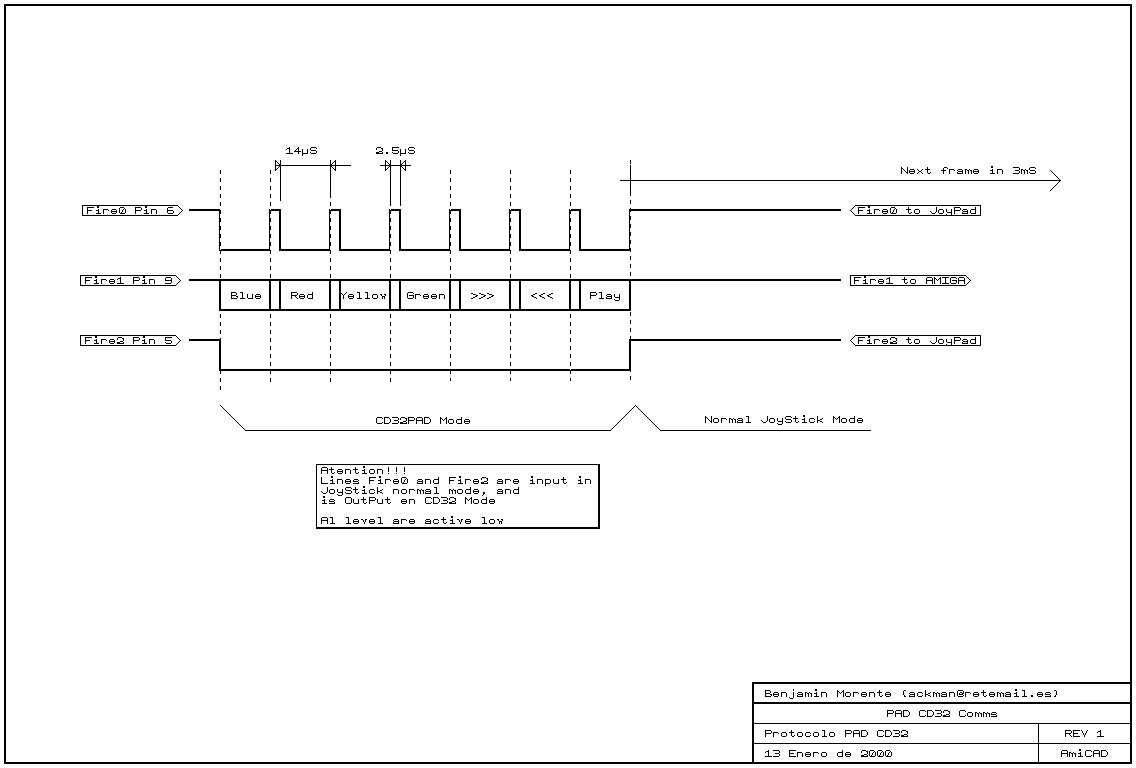

Now with APPE you can use any PlayStation pad like an Amiga CD32 Pad, also you can use it as a 1 or 2 button normal joystick.
If you have an old C64, ZX Spectrum, Amstrad CPC, or an MSX you can use APPE in these computers too.
*****************
Description
*****************
APPE is an interface capable to use PlayStation pads like normal Amiga Joysticks or CD32 Pads. There's no need for any kind of software to use it, it's 100% compatible with the 100% of the soft that uses a Joystick or CD32 Pad, and works with any digital or analog (DualShock) PlayStation pad on any Amiga model.
Is possible use it also on any computer that uses standard Joysticks with DB9 connector like the Commodore 64, MSX, Spectrum (requires joystick interface) Amstrad CPC, Atari... etc.
A bonus feature: APPE use the R2 PlayStation Button as an Autofire Button.
You can build your own one, but you need some electronical aknowledge, some ability and the components listed in the archive APPE_SQ.iff, these components are cheap and simple to find except the Pad connector, the best way to obtain it is buying a pad extensor cable on any console shop, and cutting the right connector. The heart of APPE is the PIC16F84/10 processor that needs the file APPE_v3m.HEX to run.
If you decide to mount it yourself this is GIFTWARE, you must sendme a gift. but if you decide to build lots of interfaces to sell it and win money (ej any Amiga hardware manufacturer) please do a mention of the original author and send me a percentage from the amount. Think that you're getting money with my idea and my work.

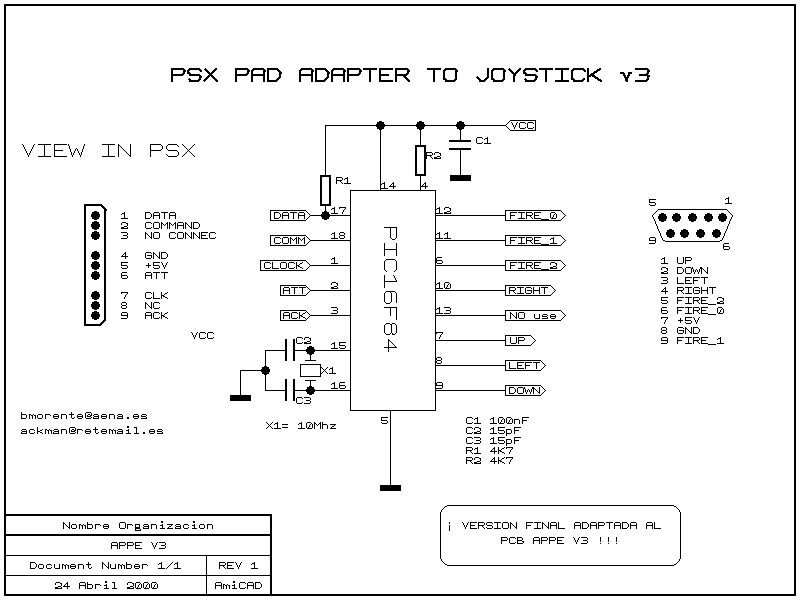

Note: The schematic found in the archive APPE_SQ.GIF was made using the AmiCAD program
*******************
History of APPE
*******************
v1.0.0 - Internal release.
- Only emulates a 3 button normal Joystick.
- Only the prototype unit was made.
v1.2.0 - First Public release.
- Lot of enhancements in the source code.
- Only emulates a 3 button Joystick but more accurate.
v2.0.0 - Internal release only.
- Fixed the problem with non DualShock Pads.
- The PCB was redesigned.
- Added the autofire feature
- Again More accuracy
v3.0.0 - Emulation of CD32 Pads is now fully working
- Some bugs off
v3.0.1 - Fixed documentation! (the docs in v3.0.0 are bad!)
v3.0.2 - Fixed documentation! (the schematic v3.0.0 are bad too)
- bug RIGHT botton fixed (I upload by error an older version
of APPE program... sorry...
*********
To Do
*********
APPE v4 Will use the Analogic stickers (like the ones on DualShock) as a normal Joystick Stick, or maybe an Amiga mouse emulation, i'm thinking
about it.
APPE v5 The word that the world waits is vibration, but this is a great problem because the Amiga's Joystick Port can't supply the voltage needed by the dualshok to run. A posible fix to this is the use of an external power supply.
Author
------
Benjamin Morente
Alias AckMAN
ackman@retemail.es (Home)
bmorente@aena.es (Work)
C/ Pintor Soroya 1, 4ºC
Santa Fe (Granada)
D.P. 18320 España Spain
Visit my home page: http://personal4.iddeo.es/ackman
Navod na internete som nasiel tu - https://aminet.net/package/docs/hard/appe_v32
Dnes som zohnal PIC 16F84, paticu, dosky na leptanie a zopar suciastok.
Kedze budem potrebovat napalit PIC , hladam niekoho kto mi to napali alebo si kupim palicku za 20€. Nasiel som tento z Ebay, podporuje PIC 16f84 a stoji len 8 libier.
Chcel by som Vas poprosit o rady a pomoc pri mojom dalsom projekte (ale ich dako zacina pribudat).
V com si najlespie nakreslit plosak, vyleptat, ako si to naniest na dosku ?
Dakujem vopred.
Dostal som odporucanie na prekontrolovanie programu pred napalenim - cez MPLAB
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
--------------- English text Spanish version in the bottom --------------
APPE v3.0.2
Amiga Playstation Pad Emulator
(c) Benjamin Morente - AckMAN 2000
********************
Introduction
********************
First, excuse my poor english. i'm spanish.
In Spain every next day is more hard to find suitable Joysticks to use in the Amiga, Here in Granada it's almost impossible, we need to find they outside... this is time consuming and expensive. When we found it we have other problem usually the Joystick have one or two buttons, this makes it unusable to play games on some emulators like WarpSnes or MamePPC that requires a CD32 PAD to play games with more than two buttons... But one day looking shops i see lots of PlayStation pads... There are in a great variety of colors, forms... and prices... it's posible find cheap Pads here next of my home... but we can't use they on my Amiga... or not?... if i can... if i do... and APPE was born!
>>>>>>>>>>>> Amiga PlayStation Pad Emulator <<<<<<<<<<<<<<
Now with APPE you can use any PlayStation pad like an Amiga CD32 Pad, also you can use it as a 1 or 2 button normal joystick.
If you have an old C64, ZX Spectrum, Amstrad CPC, or an MSX you can use APPE in these computers too.
*****************
Description
*****************
APPE is an interface capable to use PlayStation pads like normal Amiga Joysticks or CD32 Pads. There's no need for any kind of software to use it, it's 100% compatible with the 100% of the soft that uses a Joystick or CD32 Pad, and works with any digital or analog (DualShock) PlayStation pad on any Amiga model.
Is possible use it also on any computer that uses standard Joysticks with DB9 connector like the Commodore 64, MSX, Spectrum (requires joystick interface) Amstrad CPC, Atari... etc.
A bonus feature: APPE use the R2 PlayStation Button as an Autofire Button.
You can build your own one, but you need some electronical aknowledge, some ability and the components listed in the archive APPE_SQ.iff, these components are cheap and simple to find except the Pad connector, the best way to obtain it is buying a pad extensor cable on any console shop, and cutting the right connector. The heart of APPE is the PIC16F84/10 processor that needs the file APPE_v3m.HEX to run.
If you decide to mount it yourself this is GIFTWARE, you must sendme a gift. but if you decide to build lots of interfaces to sell it and win money (ej any Amiga hardware manufacturer) please do a mention of the original author and send me a percentage from the amount.
Think that you're getting money with my idea and my work.Note: The schematic found in the archive APPE_SQ.GIF was made using the AmiCAD program
*******************
History of APPE
*******************
v1.0.0 - Internal release.
- Only emulates a 3 button normal Joystick.
- Only the prototype unit was made.
v1.2.0 - First Public release.
- Lot of enhancements in the source code.
- Only emulates a 3 button Joystick but more accurate.
v2.0.0 - Internal release only.
- Fixed the problem with non DualShock Pads.
- The PCB was redesigned.
- Added the autofire feature
- Again More accuracy
v3.0.0 - Emulation of CD32 Pads is now fully working
- Some bugs off
v3.0.1 - Fixed documentation! (the docs in v3.0.0 are bad!)
v3.0.2 - Fixed documentation! (the schematic v3.0.0 are bad too)
- bug RIGHT botton fixed (I upload by error an older version
of APPE program... sorry...
*********
To Do
*********
APPE v4 Will use the Analogic stickers (like the ones on DualShock) as a normal Joystick Stick, or maybe an Amiga mouse emulation, i'm thinking
about it.
APPE v5 The word that the world waits is vibration, but this is a great problem because the Amiga's Joystick Port can't supply the voltage needed by the dualshok to run. A posible fix to this is the use of an external power supply.
Author
------
Benjamin Morente
Alias AckMAN
ackman@retemail.es (Home)
bmorente@aena.es (Work)
C/ Pintor Soroya 1, 4ºC
Santa Fe (Granada)
D.P. 18320 España Spain
Visit my home page: http://personal4.iddeo.es/ackman
